Hot Selling Small Multi Spindle CNC Router Machine for Wood Screen Furniture Cabinet, Smart Woodworking CNC Router
Wood working CNC router machine 1325 for wood
Breakpoint memory, can continue to work after power off & breaking knife
Product Description1, Welded, no assembly required,more stable.2, Spindle with water cooling, which keeps the spindle at a constant temperature and maintains longevity.3, Large power water cooling Spindle,low noise and more accurate.4, Compatibility software:Type 3, Artcarm, Castmate, Proe, Corelerow.
Technical parameters of CNC Wood Router
|Working size||1300x2500x200mm or Customized|
|Machine structure||Welded Steel|
|Table Surface||T-slot worktable Vacuum table+5.5kw vacuum pump|
|X, Y Structure||Rack and Pinion Drive, Linear guide rail|
|Z Structure||Taiwan Rail Linear Bearings and Ball Screw|
|Max. Power Consumption (Without spindle)||3.0KW|
|Max. Rapid Travel Rate||33000mm/min|
|Max. Working Speed||25000mm/min|
|Spindle Power Motor||3KW (4.5kw /5.5kw optional)|
|Drive Motors||Leadshine, YAKO, Delta|
|Working Voltage||AC380V/50/60Hz,3PH (Option: 220V)|
|Command Language||G code|
|Operating System||DSP / NC studio / Syntec|
|Software Compatibility||Type3 / Ucancam / Artcam|
|Running Environment Temperature||0°C~45°C|
Features of wood CNC router:
1. China water-cooling Spindle or Italy HSD Air Cooling Spindle
Top brand of the world. Spindle speed: 0-24000RPM
2. Inverter Taiwan Delta Inverter
It can output 150% of rated torque at zero speed, and it can have "point to point" and relative
distance control functions for position control.
3. Motor and Drive
Stepper Motor, big power.
YAKO Drive and Leadshine 860H Drive can run with smaller noise, lower heating, smoother
movement and have better performances at higher speed

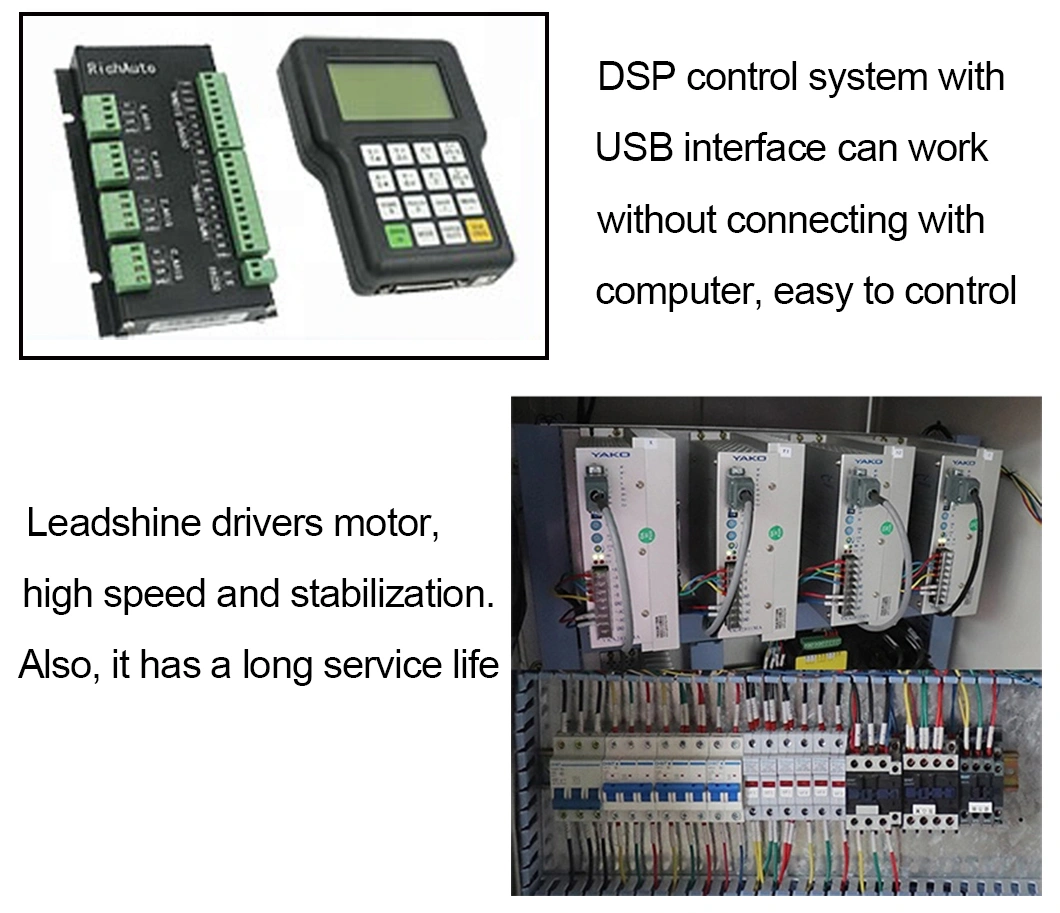

4. Control system
DSP handle controller or Taiwan SYNTEC Control System
Imported SYNTEC high performance control system, separated keyboard control, color LCD display.
5. Transmission system
Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN or ABBA Linear Rail
HG series linear guideway can achieve a long life with high speed, highly accurate and smooth
6. Working table T-slot and Vacuum Table
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you
to clamp the workpiece in place.
Details of woodworking cnc router
Applications of Woodworking CNC Router
Outdoor advertising: materials cutting and engraving, display rack, light boxes, 3D letters, reliefs, sign boards, plates, logos, emblems.
Woodworking: carving patterns or designs on woodwork, decoration, wood carving, cutting chipboard, furniture making, etc.
Metal industry: nonferrous metal cutting, milling, drilling, engraving, marking, grinding
Furniture: wooden doors,cabinets,plate,office and wood furniture,tables,chair,doors and windows.
The wood products:voice box,game cabinets,computer tables,sewing Machine table,instruments.
Plate processing:Insulation part,plastic chemical components,PBC,inner body of car,bowling tracks,stairs,anti-Bateboard,epoxy resin,ABS,PP,PE and other carbon mixed compounds.
Decoration industry:Acrylic,PVC,MDF,artificial stone,organic glass,plastic and soft metals such as copper multiple function
Packaging & Shipping
1. Kahan CNC machine and accessories are covered by plastic sheet first.
2. Then the whole machine is packed by plywood case used for export.
3. Kahan CNC machine can be delivered by sea, by train, or by plane depending on customers.
Shipped in 15-30 working days after payment.
1 years warranty for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. After 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video CD disk.
3. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
Q: There are so many machine types, which one should I choose?
A: Kahan Laser provides machine parameters in each product demo page, please kindly check technical data column. It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, feel free to contact us.
Q:This is my first time buying your machine; I have no ideas about Kahan's machines quality?
A: Each machine is strictly produced based on the standard of ISO9000-2000, ISO14001-2004, GMC global manufacturer and CE certifications. Our products have CE certifications verified by TÜV SÜD, Bureau Veritas and etc. As china high-power Laser Cutting Machine provider, more than 10,000 machines have been sold in the past ten years. Customer is our first priority. We are confident to tell customers that there is no need to worry about our quality.
Q: When I got this machine, but I don't know how to use it. What should I do?
A:There are videos and English manual with the machine. If you still have some doubts, we can talk by telephone or email.
Q: If some problems happen to this machine during warranty period, what should I do?
A: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. If you have any question,just contact us freely.
Tel: +86 17857334233
Fax: +86 0571-8610-1763
Contact us if you need more details on 3D CNC Wood Carving Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about CNC Wood Router 1325、Router Machine Wood. If these products fail to match your need, please contact us and we would like to provide relevant information.
