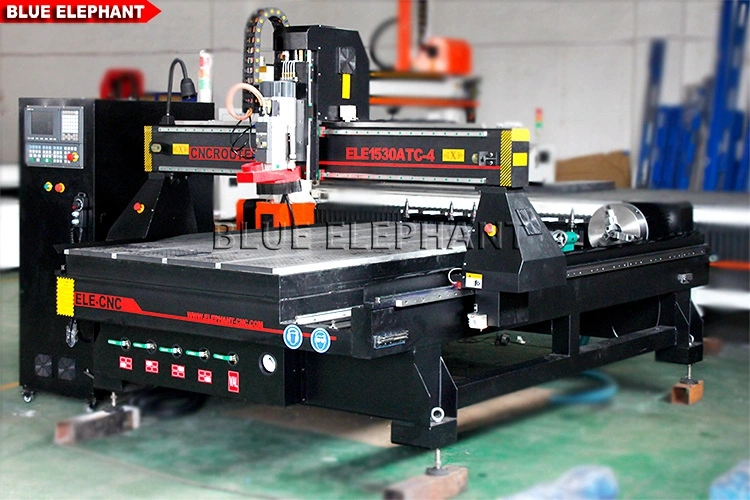

Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine

Product Description

Atc Tool Changer Cnc Router 1530 ATC Cheap Cnc Router Machine
Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine


Parameters:

Number

Description

Parameter

1

X,Y,Z Working Area

1500x3000x200mm

2

Table Size

1500×3000mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy

±0.03mm

5

Table Surface

Vacuum and T-slot working table

6

Frame

Welded Structure

7

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and TBI Ball Screw

9

Max. Power Consumption

(Without Spindle)  3.2Kw

10

Max. Rapid Travel Rate

33000mm/min

11

Max. Working Speed

25000mm/min

12

Spindle Power

9kw Italy HSD ATC air cooling spindle

13

Spindle Speed

0-24000RPM

14

Drive Motors

850W Japan YASKAWA servo motor

15

Working Voltage

380v, 3 phase, 50/60HZ

(Option: AC220V/50/60Hz,3PH)

16

Command Language

G Code

17

Operating System

Taiwan SYNTEC control System

18

Computer Interface

USB

19

Rotary device

300mm diameter*2500mm length

20

Collet

IOS30

21

X,Y Resolution

<0.01mm

22

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%


Main parts:
Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine


Application:

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.
Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine

Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.
Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine
Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine


Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.


Our Factory
Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine
Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine

Jinan Blue Elephant CNC Machinery, the professional cnc router and Laser Cutting Machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.

Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine
Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine
Atc Tool Changer CNC Router 1530 Atc Cheap CNC Router Machine
