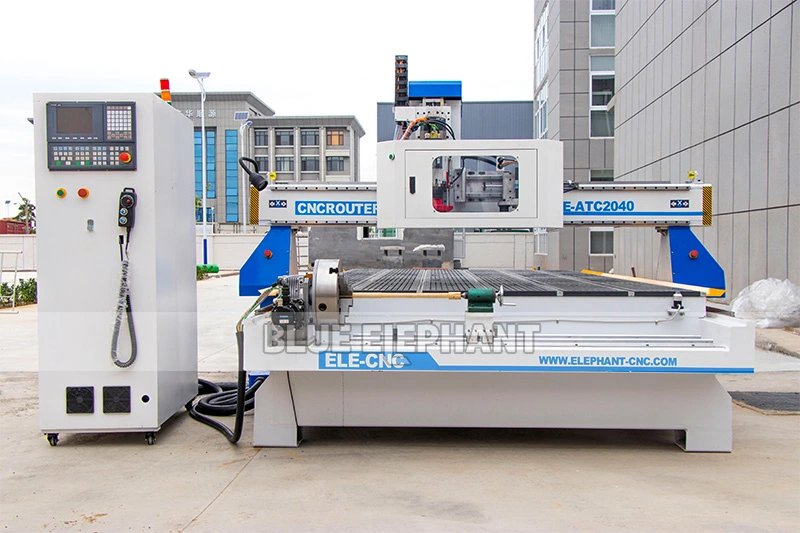

4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture

Product Description

4axis cnc router 2060*4000*400mm woodworking machine for diy wood furniture

4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture


Features :

  1. The machine have dust collector, so it can make the machine more cleaner.
  2. New type heavy duty frame and gantry.
  3. SYNTEC control system and servo motor driver system, famouse brand and good quality.
  4. Carousel tool changer, It's more faster to change tool.

Parameters :

DescriptionParameters
ModelELECNC-2040ATC-4
Working size2060*4000*400mm
ColorWhite and Blue (customizable)
Working Voltage380V, 3Phase, 50Hz
Control systemTaiwan SYNTEC control system
Spindle9kw Italy HSD ATC air cooling spindle
Inverter11kw Delta Inverter
Motor & Driver850w Japan YASKAWA servo motor and 1kw driver
Table surfaceT-slot and vacuum working table
Lubrication systemAuto Lubrication system
Automatic tool magazine12
Gantry structureGantry moving
StructureNew type thicker and bigger heavy duty welded frame and gantry
TransmissionX,Y rack and pinion drive, Z Taiwan TBI ball screw
RailABBA 25#
Vacuum pump2 sets 5.5kw water circulation vacuum pump   (380V, 3Phase, 50Hz)
Dust collector1.5kw new type double packet dust collector (380V, 3Phase, 50Hz)
Tool sensorAutomatic tool sensor calibration
Rotary device diameter300mm

PS:All the working area and specifications can be customized according to your requests.

Product details
4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture
4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture
4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture
4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture


Applications

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture
Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.


4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture
4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture


Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

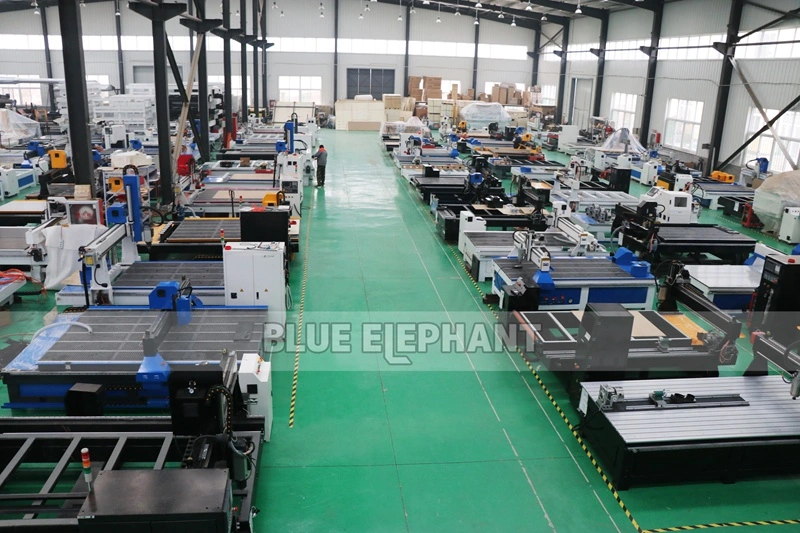

Our factory

4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture

Jinan Blue Elephant CNC Machinery, the professional cnc router and Laser Cutting Machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.

4axis CNC Router 2060*4000*400mm Woodworking Machine for DIY Wood Furniture
