High Speed 1530 Atc CNC Router with Table Rotary Device for Engraving 3D Wood Figures

Product Description

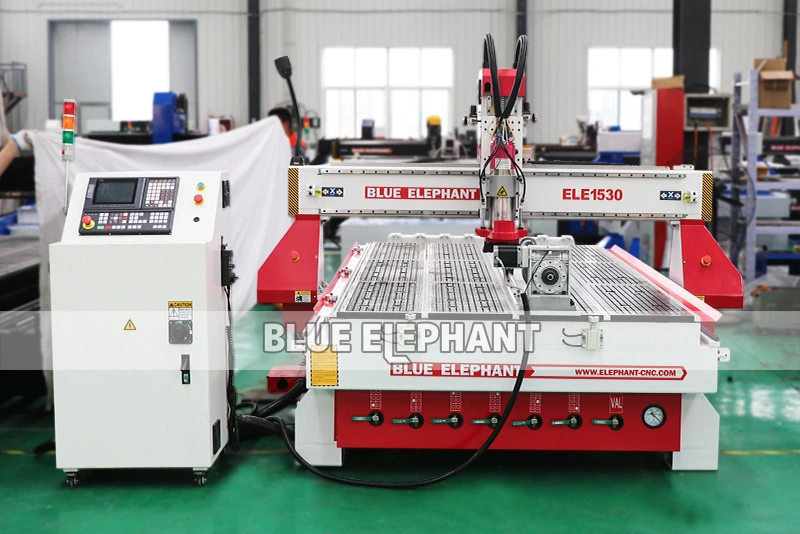

High speed 1530 ATC CNC Router with Table Rotary Device for Engraving 3D Wood Figures
High Speed 1530 Atc CNC Router with Table Rotary Device for Engraving 3D Wood Figures

Features:

  • Multi functional: Removable rotary device to work on cylinder objects,can be assembled according to your need.
  • Automatically: This type is featured with linear type tool magazine, before work, install different knife in tool holder, under control system spindle can change needed tool automatically to process different patterns of objects.Moreover, it is also equipped with automatic tool sensor calibration and 5 pieces position cylinder.It will be very convenient for woodworking.
  • High speed: Japan Panasonic servo motor can promise fast speed and high efficiency.

Technical specification

Model

ELECNC-1530ATC-4

X,Y,Z Working Area

1500*3000*300mm

Z axis travel

300mm (according to your requests)

Table Surface

Vacuum and T-slot working table with 6 zones

Frame

Thicken steel Square Tube Heavy structure ,

8mm thicken steel gantry with T type

X, Y Structure

Helical Gear and rack transmission, Taiwan PMI Linear Rail #20

Z Structure

Taiwan TBI Ball Screw, Taiwan PMI Linear Rail #20

Spindle Power

5.5kw Chang sheng water cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

750W Japan Panasonic servo

Working Voltage

380V, 3Ph, 60Hz ( 220V for optional)

Operating System

Taiwan LNC control system with MPG hand wheel

Lubrication system

Automatic oil lubrication system

Tool sensor

Automatic tool sensor calibration

Inverter

5.5KW Fuling inverter

Position

5 pieces Position cylinder

Vacuum pump

4KW German Becker vacuum pump

Rotary device

Rotary device(Diameter in 200mm)

PS: All the working area and specifications can be customized according to your requests.


Detail images
High Speed 1530 Atc CNC Router with Table Rotary Device for Engraving 3D Wood Figures
High Speed 1530 Atc CNC Router with Table Rotary Device for Engraving 3D Wood Figures

High Speed 1530 Atc CNC Router with Table Rotary Device for Engraving 3D Wood Figures

Application

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

High Speed 1530 Atc CNC Router with Table Rotary Device for Engraving 3D Wood Figures

Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.
High Speed 1530 Atc CNC Router with Table Rotary Device for Engraving 3D Wood Figures

Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

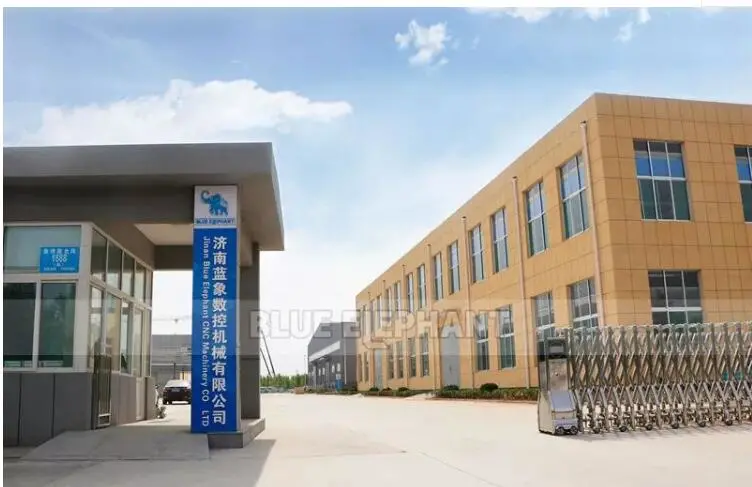

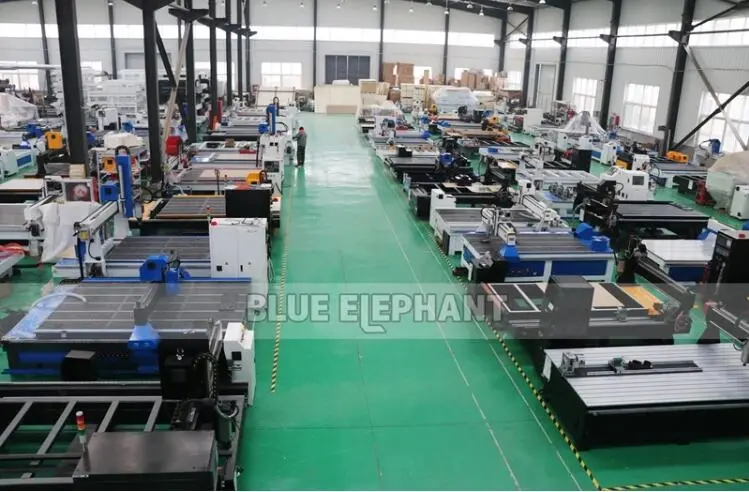

Our factory

High Speed 1530 Atc CNC Router with Table Rotary Device for Engraving 3D Wood Figures
High Speed 1530 Atc CNC Router with Table Rotary Device for Engraving 3D Wood Figures

Jinan Blue Elephant CNC Machinery, the professional cnc router and Laser Cutting Machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
