Home > Products > 3.4 Axis Cnc Router > Rotary Device CNC Router > 1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis

1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis

Product Description

1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis

1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis

Advantages:

  • Heavy duty thicker and bigger welded steel tube frame - more stronger.
  • 4.5KW water cooling spindle -low noise.
  • One 200mm rotary on one side of machine, it can engrave the materials from different views.
  • Mach3 control system can connect with computer, it is convenient to opertaion.
  • Vacuum & T-slot working table, match one vacuum pump, can fix the material more stable.



Product Details:

1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis
1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis
1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis



    Parameters:

    Description

    Parameter

    X,Y,Z Working Area

    1300x2500x200mm

    Table Surface

    Vacuum and T-slot working table,4 zones

    Frame

    New style heavy duty Welded Structure

    X, Y Structure

    Rack and Pinion Drive, #20 ABBA Rail Linear Bearings

    Z Structure

    Taiwan TBI ball screw

    Spindle Power

    4.5kw Changsheng Water Cooling Spindle

    Spindle Speed

    0-24000RPM

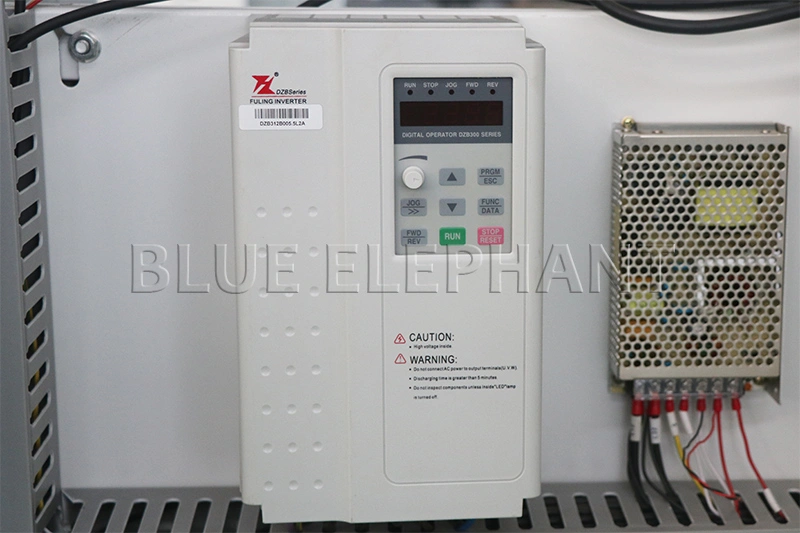

    Inverter

    5.5KW Fuling Inverter

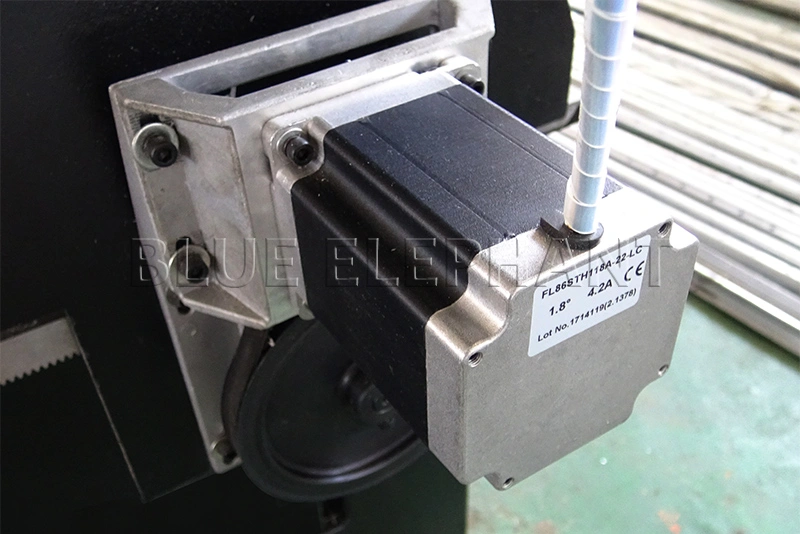

    Drive Motors

    Stepper FL118

    Working Voltage

    380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)

    Command Language

    G Code

    Operating System

    Mach3

    Computer Interface

    USB

    Rotary device

    200mm diameter*2000mm length

    Collet

    ER25

    X,Y Resolution

    <0.01mm

    Software Compatibility

    Artcam software 2012

    Running Environment  Temperature

    0 - 45 Centigrade

    Relative Humidity

    30% - 75%

    PS:All the working area and specifications can be customized according to your requests.


    Applications:

    1. Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
    2. Advertising industry: Advertising identification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
    3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
    4. Relief sculpture and 3D engraving.
    5. Cylindrical object.

    1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis


    1. Wood furniture industry

    Doors; Cabinets; Tables; Chairs.

    Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

    2. Advertising industry

    Signage; Logo; Badges; Display board; Meeting sign board; Billboard

    Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

    3. Die industry

    A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

    4. Artwork and Decoration

    wood crafts; gift box; jewelry box

    5. Others

    Relief sculpture and 3D engraving and Cylindrical object.

    Customers feedback

    1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis


    Packaging Details:

    1. Three layers:
      The innermost layer is EPE pearl cotton film package;
    2. The middle layer is wrapping up with environmental protection material ;
    3. And the outermost layer is winding up with PE stretch film.
    4. They're very environmentally friendly.
    5. If you need a wooden box, we will make a wooden box outside the machine.

    Delivery Detail: Shipped in 15 working days after payment.




    Our Service

    1.Teach you professional cnc router machine technology.
    2.Provide you lifelong cnc router technology support service.
    3.One year for the whole machine, lifelong maintenance.
    4.Within 24 hours to solve the problem you're facing, high efficiency, high quality.
    5.Network video communication and online telephone service in our w ork day.
    6.Engineers always stand by at any time for going abroad for after sales service face to face if you need.
    7.Completely service system on pre-sales, in sales, after sales, protecting customer's constantly working, equipped with easy learned installation guide, maintenance guide, instructions for use, etc.


    Our factory
    1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis

    1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis


    • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.


    Factory visitors

    1325 4 Axis Water Cooling CNC Wood Router Cutting Machine with Rotary Axis
